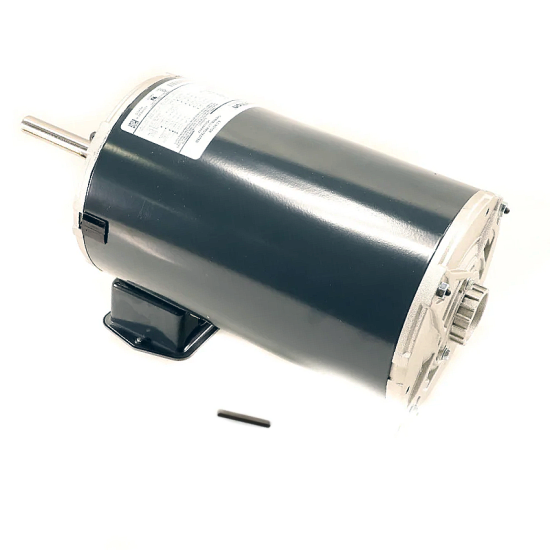

Carrier Condenser Fan Motor HD52AK653

Carrier HD52AK653 Condenser Fan Motor – 1 HP, 208-230/460V, 1140 RPM

Maximize the uptime of your commercial HVAC equipment with the Carrier HD52AK653 Condenser Fan Motor. As a Genuine Carrier Factory Authorized Part, this motor is engineered for the high-performance demands of chillers and large package units. It features a versatile tri-voltage design and a rugged 56Y frame, making it the reliable standard for industrial air-cooled systems.

Technical Specifications

  • Part Number: HD52AK653
  • Horsepower: 1 HP
  • Voltage: 208-230 / 460 VAC (Tri-Voltage)
  • Phase: 3 PH (Three Phase)
  • Speed: 1140 RPM
  • Amperage: 6.6 / 3.3 FLA
  • Frequency: 60 HZ
  • Frame Size: 56Y
  • Enclosure: Totally Enclosed Air Over (TEAO)

Direct Replacement & Cross-Reference

The HD52AK653 serves as the authorized direct replacement for several legacy and third-party models. It is an exact fit for:

  • Carrier / Bryant / Payne P/N: HD52AK651, HD52VE400
  • Marathon Model: 5K49ZN6391S
  • Applications: Specifically designed for use in Carrier Chillers and Commercial Package Units.

Commercial-Grade Durability

Built for continuous operation, this motor utilizes a TEAO (Totally Enclosed Air Over) enclosure to prevent dust, moisture, and outdoor debris from entering the motor housing. The 3-phase design ensures balanced power distribution and high starting torque, essential for the large-diameter fan blades found on rooftop units and industrial chillers.

Pro-Tech Installation Note

Because this is a 3-phase industrial motor, it does not utilize a run capacitor. When installing, we strongly recommend a thorough inspection of the system contactor and the fan blade assembly. Pitted contacts can cause voltage drops that lead to motor burnout, while an unbalanced fan blade can cause vibration damage to the new motor bearings. Always verify your wiring configuration for 230V or 460V per the motor nameplate.

Shipping Information

  • Service Area: Shipping rates apply to the continental United States.
  • Handling: This heavy-duty motor is shipped in reinforced, industrial-grade packaging to protect the shaft and 56Y mounting frame during transit.

$2,018.00

Add to Cart:
  • Model: HD52AK653
  • Manufactured by: Carrier
