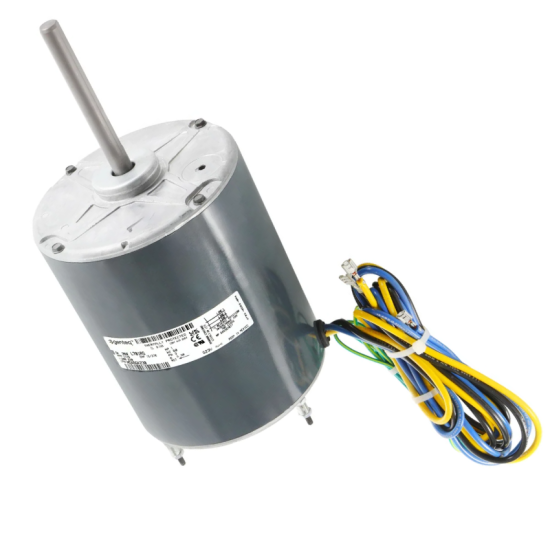

Carrier HD52GK230 Condenser Fan Motor – 1 HP, 208-230V, 1140 RPM, 3-Phase

Ensure your cooling system maintains peak efficiency with the Carrier HD52GK230 Condenser Fan Motor. This is a Genuine OEM Factory Authorized Part, specifically engineered for Carrier, Bryant, and Payne outdoor condensing units. Designed for high-performance 3-phase applications, this motor offers the reliability and precise airflow required for industrial and large-scale residential cooling.

Technical Specifications

Part Number: HD52GK230
Horsepower: 1 HP
Voltage: 208 / 230 VAC
Phase: 3 PH (Three Phase)
Speed: 1140 RPM
Amperage: 3.30 A
Frequency: 60 HZ
Frame Size: 48Y

Direct Replacement & Compatibility

The HD52GK230 is the authorized direct replacement for several legacy motors and third-party models. Please call with your model and serial to confirm fitment.

Carrier / Bryant / Payne: HD46GK230
GE / Genteq Model: 5K39UFL701AS
Note: Fits popular commercial and package units including some 48HJD series systems.

Why Choose Genuine Carrier OEM Parts?

When you use a Factory Authorized motor, you guarantee a perfect mechanical fit without the need for mounting bracket modifications or wire splicing. This 3-phase motor is built to handle the rigorous duty cycles of commercial condensers, featuring high-quality bearings and thermal protection to ensure long-term operation in extreme outdoor heat.

Installation Tip: System Inspection

Because this is a 3-phase motor, it does not require a run capacitor. However, when replacing this motor, we strongly recommend inspecting the system contactor and fan blades. A pitted contactor can lead to "single-phasing" which will burn out a new motor instantly, while an imbalanced fan blade can cause vibration damage to the new motor’s bearings.

Shipping Information

Availability And Ordering Information, Please Read: Shipping rates apply to the continental United States. This motor will ship direct from the factory to our location and the be shipped to you, it may take 48+ hours to ship. Once the order has been placed, it cannot be cancelled.
Packaging: Each motor is professionally packaged to protect the shaft and housing, ensuring it arrives ready for immediate installation at your job site.
