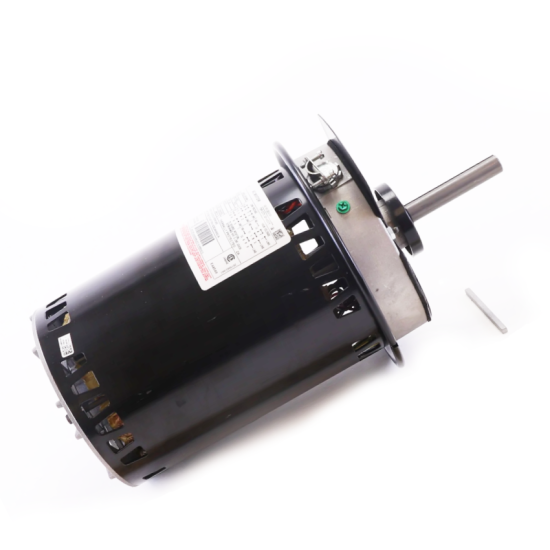

Carrier HD52AK652 Condenser Fan Motor – 1 HP, 208-230/460/575V, 1140 RPM

Carrier HD52AK652 Condenser Fan Motor – 1 HP, 208-230/460/575V, 1140 RPM

Ensure maximum uptime for your industrial cooling systems with the Carrier HD52AK652 Condenser Fan Motor. This is a Genuine Carrier Factory Authorized Part, specifically engineered for use with Motormaster speed control applications on Carrier commercial chillers and rooftop units. With its rare quad-voltage capability, including 575V support, this motor is the high-performance standard for heavy-duty HVACR environments.

Technical Specifications

  • Part Number: HD52AK652
  • Horsepower: 1 HP
  • Voltage: 208-230 / 460 / 575 VAC (Quad-Voltage)
  • Phase: 3 PH (Three Phase)
  • Speed: 1140 RPM
  • Amperage: 5.5 / 2.8 / 3.4 A
  • Frequency: 60 HZ
  • Frame Size: 56Z / P56Z
  • Enclosure: Open Air Over (OAO)

Cross-Reference & Compatibility

The HD52AK652 is a direct OEM replacement for several high-spec industrial motors. It is an exact match for:

  • Century / A.O. Smith Model: 7-176055-06
  • Magnetek Model: 176055
  • Carrier / Bryant / Payne: Commonly used in 48HJD, 38AK, and 38AQS series commercial units.

Engineered for Motormaster Applications

This motor is uniquely designed to handle the variable frequencies and demands of Carrier Motormaster head pressure control systems. Unlike standard fan motors, the HD52AK652 is built to maintain efficiency and thermal stability across a wide range of operating conditions, making it essential for chillers that must operate in varying outdoor temperatures.

Expert Support & Verification

Not sure if this is the correct motor for your specific chiller or package unit? We recommend verifying compatibility before purchase.

  • Call us at 877-821-8770 with your equipment Model and Serial Number.
  • Our technical team will ensure you get the exact OEM match for your system.

Shipping Information

  • Service Area: Reliable shipping rates available for the continental United States.
  • Safe Transit: This industrial motor weighs approximately 44 lbs and is shipped in reinforced packaging to protect the shaft and 56Z mounting frame during delivery.

$1,981.00

Add to Cart:
  • Model: HD52AK652
  • Manufactured by: Carrier
