1006801R Circuit Board 1-Stage Nordyne OEM

Nordyne / Miller / Nortek 1006801R Control Circuit Board | OEM

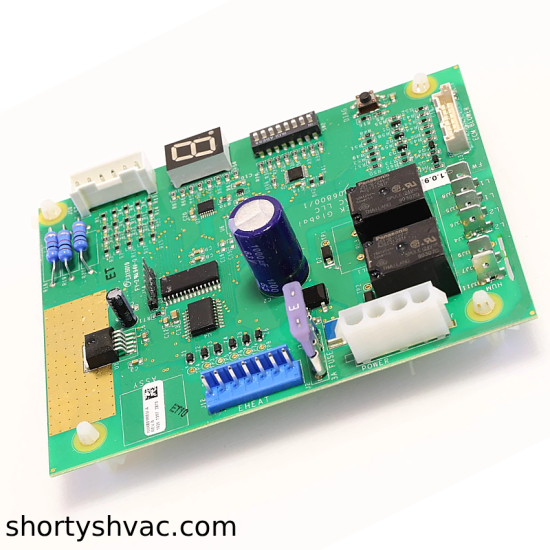

The Nordyne 1006801R is a genuine factory-authorized control circuit board engineered for Nortek HVAC equipment, including Nordyne, Miller, and Intertherm systems. As an Original Equipment Manufacturer (OEM) component, it serves as the central processing unit for air handlers and electric furnaces, managing blower speeds and heating cycles.

This board is specifically designed for systems with single-stage (1-stg) electric heat and features a 7-segment display to assist with mode identification and troubleshooting.

Compatibility & Cross-Reference

The 1006801R is the designated current replacement for several legacy Nortek and Nordyne part numbers:

  • Directly Replaces P/Ns: 1006800, 1006801, and 1006801R.
  • Equipment Series: Optimized for E7 Series electric furnaces (E7EB, E7EM, E7ED, E7EU) ranging from 10kW to 23kW.
  • Air Handler Fitment: Compatible with B6BM and B6EM series air handlers manufactured on or after January 1, 2017.
  • Broad Brand Fit: Used in units branded as Intertherm, Revolv, Miller, Gibson, Frigidaire, Westinghouse, Philco, and Tappan.

Key Features & Benefits

  • Diagnostic Display: Includes an onboard 7-segment LED display that provides real-time status codes, making it easier to diagnose system faults or confirm operating modes.
  • Adjustable Blower Speeds: Features integrated dip switches that allow for precise configuration of blower speeds for both heating and cooling/heat pump applications.
  • Safety Integrated: Includes a 3-amp blade fuse to protect the board’s sensitive 24V circuitry from low-voltage shorts.
  • OEM Reliability: Using a genuine Nortek part ensures proper communication with FSHE ECM and fixed-torque motors without the timing errors common in universal boards.

Technical Specifications

FeatureDetail
Part Number1006801R
Input Voltage24 VAC
StagesSingle-Stage (1-Stg)
DiagnosticLED Display
Fuse Protection3 Amp

Shipping & Order Details

  • Direct Shipping: This part ships direct from our Nortek distributor to ensure you receive the most current technical revision.
  • Continental US Shipping: We offer reliable shipping rates for all orders delivered within the Continental United States.
  • Authenticity: This is a brand-new, genuine Nortek Global HVAC part in original factory packaging.
