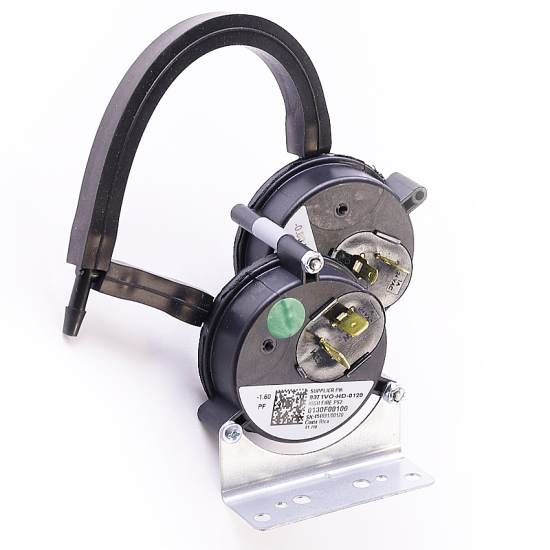

Goodman Dual-Pressure Switch 0130F00100 -0.8 / -1.6 WC SPST

Goodman / Amana 0130F00100 Dual Pressure Switch | -0.8" & -1.6" WC OEM

The Goodman 0130F00100 is a genuine factory-authorized dual pressure switch designed specifically for high-efficiency, two-stage gas furnaces. This Original Equipment Manufacturer (OEM) component is a critical safety device that ensures the venting system is operating correctly at both low-fire and high-fire heating stages.

This assembly features two independent internal Single-Pole Single-Throw (SPST) switches calibrated to -0.8" WC and -1.6" WC. By monitoring these two distinct vacuum levels, the switch confirms that the inducer fan is moving enough air to safely exhaust combustion gases before the furnace is allowed to ignite.

Compatibility & Stage Logic

The 0130F00100 is engineered for precision in two-stage Goodman and Amana heating systems.

• Replaces Goodman / Amana P/Ns: 0130F00100S, 9371VO-HS-0112.
• Dual Calibration: Monitors a lower threshold of -0.8" WC for low-stage operation and a higher threshold of -1.6" WC for high-stage operation.
• Common Model Series: Typically found in high-efficiency GMVC95, GCVC95, AMVC95, and ACVC95 series furnaces.
• System Integration: Features two 1/4" vacuum barbs and dedicated electrical terminals to communicate directly with the furnace's integrated control board.

Why Choose a Genuine Goodman Dual Switch?

• Matched Calibration: High-efficiency furnaces have very narrow operating windows; this OEM switch is tuned to the exact -0.8 / -1.6 specs required to prevent nuisance trips or unsafe operation.
• Application Specific: Designed to handle the acidic condensate and moisture levels typically found in the collector box environment of condensing furnaces.
• Drop-In Fit: The mounting bracket and wiring terminals are an exact match for the original factory part, ensuring a secure installation and proper alignment of vacuum hoses.

Shipping & Order Details

• Continental US Shipping: We provide reliable and prompt shipping rates for all orders delivered within the Continental United States.
• Authenticity Guaranteed: Shorty’s HVAC Supplies only stocks brand-new, genuine Goodman and Amana parts.
