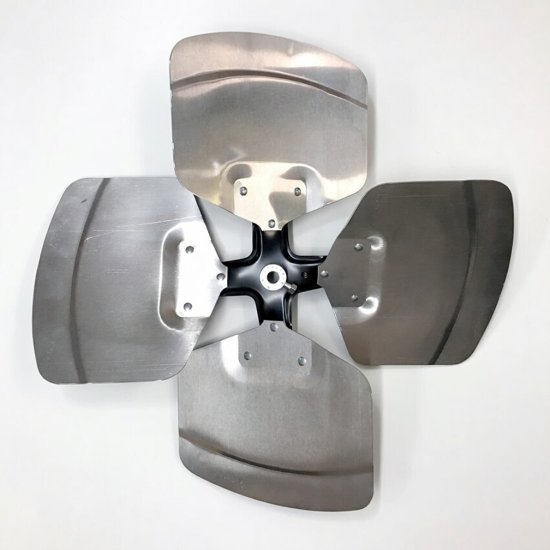

Carrier Condenser Fan Blade LA01AA023

Carrier LA01AA023 Condenser Fan Blade | 20" Diameter, 32° Pitch

Maintain critical airflow and cooling capacity with the Carrier LA01AA023 Fan Blade. This Genuine OEM Factory Authorized Part is precision-engineered to provide the exact aerodynamic performance and balance required for Carrier, Bryant, and Payne outdoor units.

Technical Specifications

  • Part Number: LA01AA023
  • Diameter: 20"
  • Blade Count: 4 Blade
  • Pitch: 32 Degree
  • Bore Size: 1/2" Hub
  • Rotation: Clockwise (CW)
  • Material: Heavy-duty, corrosion-resistant construction

Direct Replacement & Compatibility

The LA01AA023 is the authorized direct successor for specific 20-inch fan assemblies. Choosing a Factory Authorized Part ensures the propeller is perfectly matched to your motor's horsepower and RPM, preventing the efficiency loss often found with universal aftermarket blades.

  • Replaces Part Number: LA01JA020, P441-2413, 72921DP1, PS3003, 54415D3.
  • Equipment Brands: Carrier, Bryant, and Payne.
  • Design: High-pitch 4-blade configuration for maximum heat rejection.

Why Choose Genuine Carrier OEM?

Precision balance is essential for the longevity of your condenser motor. This fan blade is factory-calibrated to ensure stable rotation, which protects motor bearings from premature wear and vibration-induced fatigue. By choosing a genuine replacement, you maintain the original energy efficiency and decibel ratings of your HVAC system.

Shipping Information

  • Service Area: Shipping rates apply to the continental United States only.
  • Secure Delivery: Shipped in specialized, reinforced packaging to protect the blades from bending or warping during transit, ensuring the part arrives factory-balanced and ready for installation.

Pro-Tech Maintenance & Installation Tip: Whenever you are servicing or replacing a fan motor, a thorough inspection of the fan blade is highly recommended.

  • Check Stress Points: Inspect the areas around the rivets where the blades are attached to the hub plate.
  • Inspect for Cracks: Look for any hairline cracks starting at the rivets. If any structural cracking is found, the blade should be replaced immediately to prevent mechanical failure.

Before installing the new blade, clean the motor shaft of any debris and apply a light coating of lubricant. Ensure the hub set screw is tightened securely against the flat portion of the motor shaft to maintain proper factory clearance and alignment.

$187.00

Add to Cart:
  • Model: LA01AA023
  • Manufactured by: Carrier
