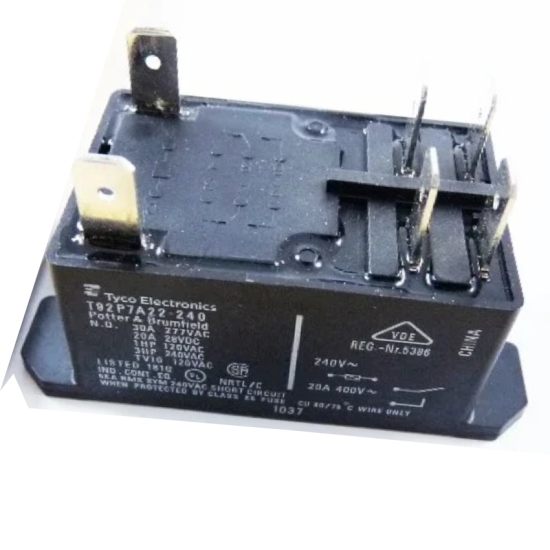

Carrier HN61PC004 HVAC Heavy-Duty Relay | 240V Coil, 30A, DPST

Restore safe, high-capacity electrical switching to your HVAC equipment with the genuine Carrier HN61PC004 Heavy-Duty Power Relay. This premium Factory Authorized Part is engineered specifically for Carrier, Bryant, and Payne residential and light commercial units. Utilizing a high-voltage 240V control coil, the Carrier HN61PC004 safely engages and disengages high-amperage components such as electric heating elements, blower motors, and compressor circuits.

Manufactured by Potter & Brumfield (Model T92S7D22-240), this robust relay features a Double Pole Single Throw (DPST) layout, enabling it to control two independent lines of a high-voltage circuit simultaneously with ultimate mechanical precision.

Technical Specifications:

  • Model/Part Number: HN61PC004
  • Potter & Brumfield Model: T92S7D22-240
  • Configuration: DPST-NO (Double Pole Single Throw, Normally Open)
  • Coil Voltage: 240 VAC
  • Contact Current Rating: 30 Amps
  • Frequency: 50/60 Hz
  • Connections: Quick-Connect Spade Terminals
  • Mounting style: Panel Mount / Flange Mount Base

Key Features & Benefits:

  • Genuine Carrier OEM Part: This factory-original relay guarantees perfect terminal alignment and exact coil resistance matching, keeping your system safe and eliminating the fire hazards associated with generic aftermarket relays.
  • Industrial-Grade Switching: Engineered with heavy-duty silver cadmium oxide contacts rated for 30 Amps, preventing the premature arcing, welding, or sticking common in lower-tier parts.
  • Double Pole Isolation: Simultaneously switches both legs of a 208/230V line, ensuring total electrical isolation for high-voltage components when the system cycles off.
  • Compact & Rugged Enclosure: Features dust-protected, flame-retardant housing designed to handle high ambient heat inside air handler control boxes or furnace vestibules.

Compatibility & Applications

The HN61PC004 power relay is utilized across a broad line of electric furnaces, fan coils, air handlers, and packaged outdoor units. It is a direct fit for:

  • Carrier / Bryant / Payne Crosses: HN61PC003 series alternatives and multi-stage heat sequencers.
  • Potter & Brumfield Cross-Reference: T92S7D22-240.

Why Buy From Shortys HVAC Supplies?

At Shortys HVAC, we offer only Original Equipment Manufacturer (OEM) factory parts so your equipment maintains its original safety ratings and performance standards. When you buy the Carrier HN61PC004 Relay, you avoid the risks of "universal" alternatives and get a component tested by factory engineers.

Shipping Information: We offer competitive, fast shipping rates across the continental United States, ensuring your critical replacement electrical parts arrive quickly to minimize equipment downtime.

$129.00

Add to Cart:
Always Free Shipping
  • Model: HN61PC004
  • Manufactured by: Carrier
