Regal Rexnord - Genteq 6203X - Replaces KMSAH014C01

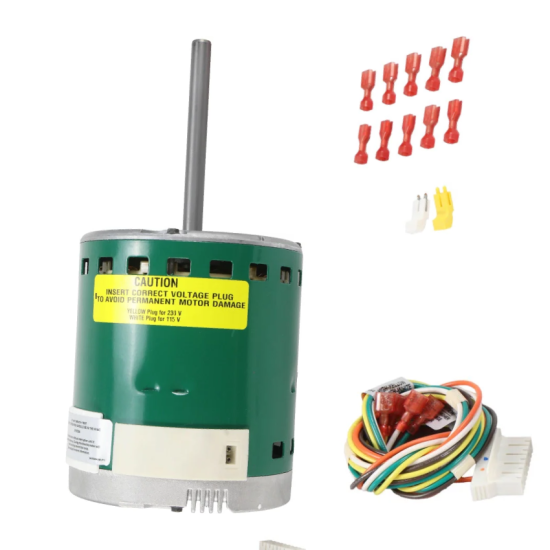

Genteq 6203X Constant Torque ECM Blower Motor | 1/3 HP, 115/208-230V

Restore smooth, variable-speed airflow, high efficiency, and quiet ventilation to your system with the Genteq 6203X Constant Torque ECM Blower Motor. Manufactured by Regal Rexnord (GE Genteq), this premium Electronically Commutated Motor (ECM) is a factory-authorized service replacement designed to replace older legacy indoor blower motors. Operating on dual-voltage 115V or 208-230V single-phase power, this 1/3 HP motor runs at 1050 RPM, using advanced constant torque logic to dynamically maintain precise CFM (Cubic Feet per Minute) delivery even as your air filter loads up with debris.

This motor servers as genuine original equipment manufacturer replacement, the 6203X is a direct upgrade for the older Carrier, Bryant, and Payne KMSAH014C01 model, dropping right into the existing furnace or air handler blower deck without complex wiring overhauls.

Technical Specifications:

  • Model/Part Number: 6203X
  • Legacy Cross-Reference: Replaces Carrier / Bryant / Payne KMSAH014C01
  • Motor Type: Constant Torque ECM (Electronically Commutated Motor)
  • Horsepower: 1/3 HP
  • Rotational Velocity: 1050 RPM
  • Voltage Compatibility: 115 / 208-230 VAC (Dual Voltage Auto-Sensing)
  • Frequency / Phase: 60 Hz / Single Phase (1 PH)
  • Frame Sizing: NEMA 48 Frame (5-5/8" Body Diameter)

Key Features & Benefits:

  • Advanced ECM Efficiency: Brushless permanent-magnet technology delivers significantly higher electrical efficiency than traditional PSC motors, reducing monthly utility bills during continuous fan operation.
  • Constant Torque Logic: Automatically increases its torque output to maintain consistent airflow and prevent short-cycling if it encounters high static pressure in the ductwork.
  • Integrated Control Module: Features a factory-secured electronic control cap on the back of the motor casing, pre-programmed for quick, direct matching to your existing system control wires.
  • Direct Drop-In Sizing: Built with standard 48-frame specifications to slide seamlessly into original manufacturer belly-band brackets and direct-drive blower wheels without cabinet modifications.
