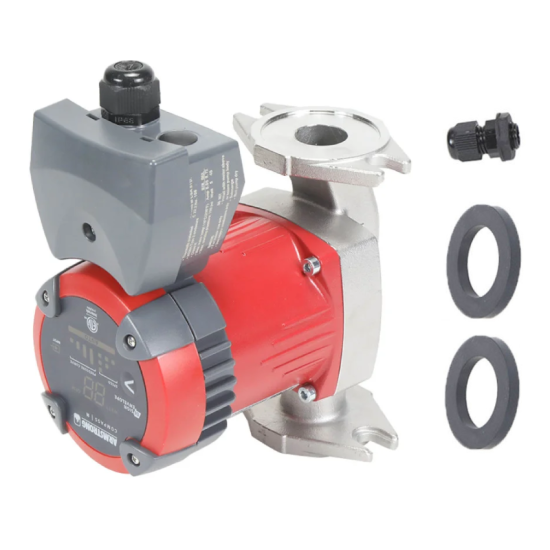

Armstrong Compass 20-20 Stainless Steel 180203-607

Armstrong Fluid Technology 180203-607 (180203-687) Compass H SS Variable Speed Circulating Pump - Ships anywhere in the US mainland for just $8!

Optimize domestic open loops and hydronic circulation with the premium, corrosion-resistant Armstrong Fluid Technology 180203-687 Compass H SS Circulating Pump. This high-efficiency, wet-rotor circulator is specifically engineered with a heavy-duty stainless steel body, making it ideal for potable water systems, radiant heating, and commercial or residential HVAC loops where cast iron pumps risk rust contamination.

Powered by an energy-conscious 115V motor pulling between 5W and 45W, the Armstrong 180203-687 integrates advanced Design Envelope technology for sensorless, demand-based control. It automatically adjusts its variable-speed output to match changing zone demands, delivering up to 20 GPM of flow and 20 feet of head pressure while slashing electrical usage by up to 70% compared to standard circulators.



To see the Cast Iron version of this pump, click here.

Technical Specifications:

  • Model/Part Number: 180203-607 (Compass H SS)
  • Body Material: High-Quality Stainless Steel (SS)
  • Voltage/Frequency: 115 VAC / 60 Hz (Single Phase)
  • Power Consumption: Ultra-Efficient 5W to 45W range
  • Performance Range: 0 to 20 GPM Flow / Up to 20 Feet of Head
  • Max Fluid Temperature: 230°F (110°C)
  • Control Configuration: Auto-Learning Variable Speed & Sensorless Control
  • Physical Dimensions: 10.25" H x 8.95" W x 5.7" L
  • Weight: 7.66 lbs
  • HTS Code: 8413702040

Key Features & Benefits:

  • Corrosion-Proof Stainless Steel: The premium stainless steel volute handles fresh, oxygenated potable water loops flawlessly without rusting, ensuring structural longevity and clean water management.
  • Smart Auto-Learning Mode: Features an adaptive electronic "brain" that senses pressure curves, learns your facility's usage patterns over time, and self-calibrates to maximize flow efficiency.
  • Variable Speed Digital Display: A clear, front-facing digital user interface allows real-time operational monitoring, showing performance wattages and error codes for effortless troubleshooting.
  • Integrated Check Valve: Equipped with a built-in removable check valve to prevent reverse siphoning or gravity circulation in complex multi-zone hydronic layouts.
  • Compact, Wet-Rotor Engineering: The self-lubricating, wet-rotor design runs whisper-quiet underneath flooring or in tight utility spaces, featuring a compact footprint for easy mechanical installation.

Compatibility & Applications

The Compass H SS 180203-687 is a highly versatile fluid-transfer pump suitable for both open and closed loops. It is widely utilized for:

  • Potable Water Systems: Domestic hot water recirculation loops for instantaneous hot water at the tap.
  • HVAC & Radiant Heating: Multi-zone hydronic staging, radiant in-floor heating coils, and commercial chilled water circulation tasking.

Please note: These pumps ship directly from the Armstrong distribution hub and may take 4-7 business days to arrive.

MODELS

ARMSTRONG

PART NUMBER

SPEED

Bell And Gossett

GRUNDFOS

WILO

TACO

Cast iron

COMPASS 20-20 CI

180203-606

Variable 3

Ecocirc Auto / Vario

ALPHA 15-55F/F-LC,




ALPHA 15-55FR/FR-LC²

Stratos ECO 16F/RFC,




16FX²

Bumble bee (HEC-2)

Cast iron

COMPASS 20-20 CI

180203-606

1

UPS 15-42F S1,




UPS 15-58FC S1,




UP 15-10F,




UPS 26-99FC S1

STAR S 16F S1

Cast iron

COMPASS 20-20 CI

180203-606

NRF-25 ST¹,

NRF-9F/LW²

UPS 15-42F S2,

UPS 15-58FC S2

STAR S 16F S2

STAR S 21F S1

005-F2-3-IFC²,

006-F4/-F7-IFC,

007-F5-5/-8-IFC²,

00R/0015-F61 IFC/-

MSF2-1 IFC S1

Cast iron

COMPASS 20-20 CI

180203-606

NRF-22²,

NRF-25 S2¹

UP 15-42F,

UPS 15-42F S3,

UPS 15-58FC S3,

UPS 26-99FC S1,

UPS 43-44FC S1

STAR S 16F S3,




STAR 16F,




STAR S 21F S2 & S3

008-F6-1-IFC,




00R-F6-1-IFC,




00R/0015-MSF2-1 IFC




S2 & S3

Stainless steel

COMPASS 20-20 SS

180203-607

Variable 3

ALPHA 15-55SF/SF-LC

Stratos ECO 16BFX²

Stainless steel

COMPASS 20-20 SS

180203-607

1

STAR 5 BU¹, STAR S




16BF S1

003-SC4-1/FC

Stainless steel

COMPASS 20-20 SS

180203-607

2

NBF/SSF-9U/LW¹,




NBF/SSF-12U/LW¹,




NBF/SSF-12F/LW²,




NBF-25 S1

UP 15-18BUC 5/7¹,




UP 15-29SU¹,




UP 15-35SUC,




UPS 15-35SUC S2¹,




UPS 15-35SFC S1 & S2,




UP 15-18SF,




UPS 15-55SFC S1²

STAR 8¹,




STAR S 16BF S2,




STAR S 21BFX S1

005-BF2/-1-IFC²,




005-SF2/-IFC²,




006-BC4-1,




006-B7-IFC,




006-SC4-1,




006-SC7-1FC,




007-BF5/-1-IFC²,




007-SF5/-IFC²

Stainless steel

COMPASS 20-20 SS

180203-607

3

NBF/SSF-22²,




NBF-25 S2¹

UPS 15-35SFCS3,




UPS 15-55SFC S2 & S3²,




UP 15-42SF,




UP 25-64SF,




UPS 26-99BFC S1,




UPS 43-44BFC S1

STAR 11 BU¹, STAR S




16BF S3,




STAR 16BF,




STAR S 21BFX S2 & S3

008-BC6,




008-BC6-IFC,




008-SF6/-IFC²,




00R/0015-SF6-IFC,




00R/0015-SF6-1-IFC²



Why Buy From Shortys HVAC Supplies?

At Shortys HVAC, we offer only Original Equipment Manufacturer (OEM) and factory-authorized industrial components so your mechanical upgrades run safely and reliably. Investing in the Armstrong 180203-687 Pump ensures your system maintains factory performance certifications, proper hydraulic balance, and maximum efficiency.

Shipping Information: We offer competitive, fast shipping rates across the continental United States, ensuring your critical fluid-transfer components arrive on time to eliminate system down-time.

$459.00

Add to Cart:
  • Model: 180203-607
  • Manufactured by: Armstrong Pump
