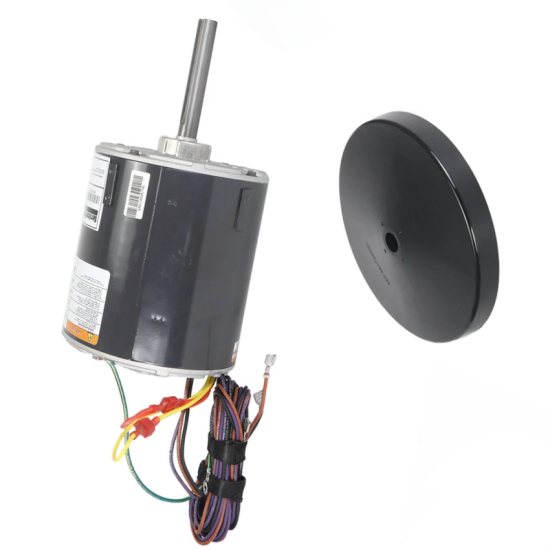

Trane Condenser Fan Motor MOT21780

Trane MOT21780 Condenser Fan Motor | 3/4 - 1 HP, 460V, 1125 RPM

Restore high-capacity cooling to your HVAC system with the powerhouse performance of the genuine Trane MOT21780 Condenser Fan Motor. This heavy-duty OEM replacement is engineered for Trane and American Standard outdoor units that require significant torque and airflow. Uniquely rated for both 3/4 HP and 1 HP applications, the Trane MOT21780 provides the aggressive heat dissipation needed for large-tonnage condensing units and commercial rooftop systems.

Designed for global versatility, this Service First OEM motor supports a wide range of voltages, including 380V, 415V, and 460V, making it a critical component for specialized power configurations.

Technical Specifications:

• Model/Part Number: MOT21780
• Horsepower: 3/4 HP / 1.0 HP (Dual Rated)
• Voltage: 380 / 415 / 460 VAC
• Current: 2.50 Amps
• Speed: 1125 RPM (60Hz) / 950 RPM (50Hz)
• Frequency: 50 / 60 Hz
• Phase: Single Phase (1 PH)
• Frame Size: 48 Frame
• Enclosure: Totally Enclosed Air-Over (TEAO)
• Rotation: CCW (Counter-Clockwise)

Key Features & Benefits:

• Industrial-Grade Versatility: The dual horsepower and multi-voltage ratings allow this single motor to replace a wide variety of specialized Trane fans, reducing inventory complexity for contractors.
• Aggressive Airflow Management: With a top speed of 1125 RPM, this motor is designed to move massive volumes of air, ensuring your system maintains factory-spec head pressure even in the most extreme ambient temperatures.
• All-Weather Reliability: The TEAO (Totally Enclosed Air-Over) housing protects internal windings from rain, dirt, and corrosive elements, significantly extending the motor's service life.
• OEM Precision Fit: As an original factory part, it mounts directly to your existing Trane brackets and aligns perfectly with the fan blade for balanced, vibration-free operation.

Compatibility & Applications

The MOT21780 is a heavy-duty motor typically found in large-tonnage residential systems and light commercial HVAC packages. It is the verified modern replacement for:

• Older Part Numbers: MOT18820 and various 460V 48-frame Trane motors.
• Equipment Type: 5-ton+ residential units, commercial heat pumps, and 460V three-phase-compatible equipment setups.
