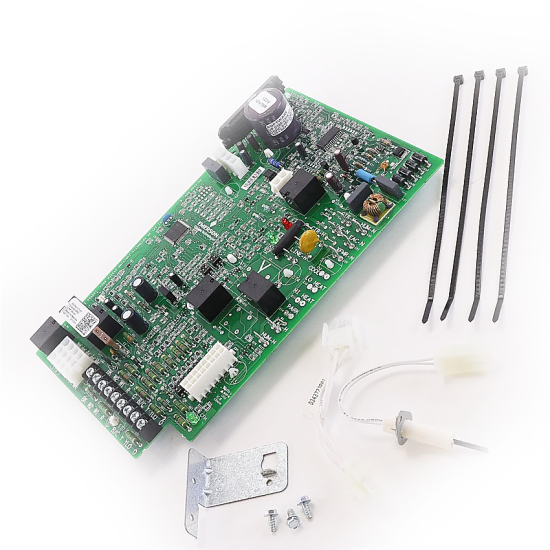

Trane Circuit Board Kit KIT15816

Trane KIT15816 Furnace Control & Ignitor Upgrade Kit | OEM Replacement

Restore your heating system’s reliability with the Genuine Trane KIT15816 Furnace Control Upgrade Kit. This comprehensive OEM service kit is the factory-authorized solution for upgrading or repairing Trane and American Standard 2-stage gas furnaces.



By combining the main integrated furnace control (IFC) board with a high-performance silicon nitride ignitor and the necessary wiring adapters, this kit ensures a seamless transition from older, failure-prone ignition styles to the latest manufacturer standards. This is a "Service First" designated kit, engineered to eliminate common furnace issues like delayed ignition, short-cycling, or system lockouts.

Compatibility & Supersession

This kit is the official direct replacement and upgrade for several older Trane part numbers. If your service manual calls for any of the following, the KIT15816 is your required replacement:

  • Replaces Part Numbers: CNT05160, CNT04985, CNT04678, CNT03777, D342263P01
  • Fits Models: Commonly found in Trane XV90, XV95, XR95, and American Standard Freedom series furnaces.

What’s Included in the Box?

Unlike buying individual components, this all-in-one kit ensures all parts are perfectly calibrated to work together:

  1. Integrated Furnace Control (IFC) Board: Manages the blower motor, gas valve, and safety sequences.
  2. Silicon Nitride Ignitor: A more durable, long-lasting ignition element than older silicon carbide versions.
  3. Wiring Harness Adapter: Ensures the new board and ignitor interface perfectly with your existing furnace plug.
  4. Installation Hardware: Includes necessary screws and zip ties for a clean, professional install.

Shipping Information

  • Continental US Shipping: We offer a reliable shipping rate of just $8 for all single part orders within the continental United States.

$1,197.00

Add to Cart:
  • Model: KIT15816
  • Manufactured by: Trane
