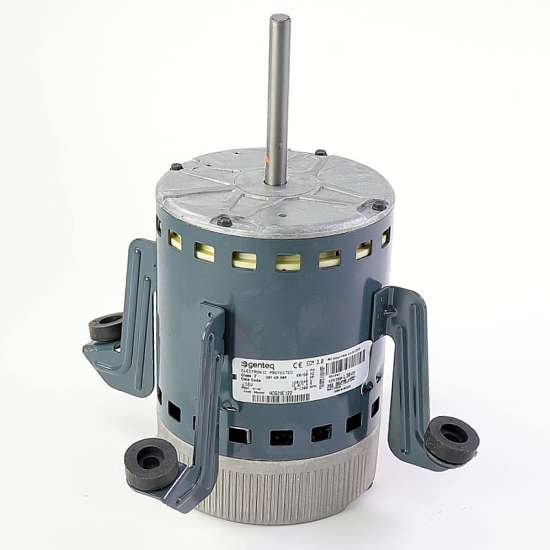

Carrier Variable Speed Blower Motor 58MV660005

Carrier 58MV660005 Variable Speed ECM Blower Motor | 1 HP

Restore peak efficiency, adaptive airflow control, and quiet performance to your premium heating and cooling equipment with the Carrier 58MV660005 Blower Motor. This Genuine OEM Factory Authorized Part is a heavy-duty variable-speed ECM (Electronically Commutated Motor) designed to meet the precise technical requirements of Carrier, Bryant, and Payne variable-speed furnaces and air handlers.

Technical Specifications

• Part Number: 58MV660005
• Motor Type: Variable Speed (ECM)
• Horsepower: 1 HP
• Voltage: 120 / 240 V (Dual Voltage compatible)
• Frequency: 50 / 60 HZ
• Amperage: 12.8 / 7.4 A
• Speed Range: 0–1300 RPM
• Phase: 1 PH

Direct Replacement & Compatibility

The 58MV660005 serves as the factory-authorized direct replacement for several older motor designs and Genteq models. Because this motor contains proprietary factory programming, it communicates directly with your furnace or air handler’s main circuit board to ramp up or down seamlessly, adjusting for real-time static pressure changes in your ductwork.

• Replaces Part Numbers: HD52SE122, HD52SE120
• Genteq (GE) Cross-Reference: Model 5SME39SXL3048
• Equipment Brands: Carrier, Bryant, and Payne.

Why Choose Genuine Carrier OEM?

A 1 HP variable-speed motor relies on an advanced, integrated electronic control module loaded with factory parameters specific to the system's heat exchanger and coil restrictions. Generic or universal motors cannot communicate with the proprietary Carrier control logic, resulting in system lockouts, inadequate airflow, or short cycling. Choosing a Factory Original motor ensures a flawless plug-and-play installation, maintaining your equipment's original energy efficiency ratings and whisper-quiet operation.

Shipping Information

• Service Area: Shipping rates apply to the continental United States only.

Pro-Tech Installation & Safety Tip: High-horsepower ECM modules are highly susceptible to damage from voltage surges and moisture.

• Disconnect Power: Ensure all power is completely shut off at the breaker panel before servicing the unit.
• Inspect the Harness: Look for signs of overheating, loose pins, or wire corrosion on the control and power plugs. A faulty wiring harness can immediately ruin a brand-new motor module.
• Drip Loop Alignment: When mounting the motor in the blower scroll, always ensure the wiring exiting the motor loops downward slightly before entering the module connector. This "drip loop" ensures that any tracking condensation drops off harmlessly rather than entering and short-circuiting the electronics.
