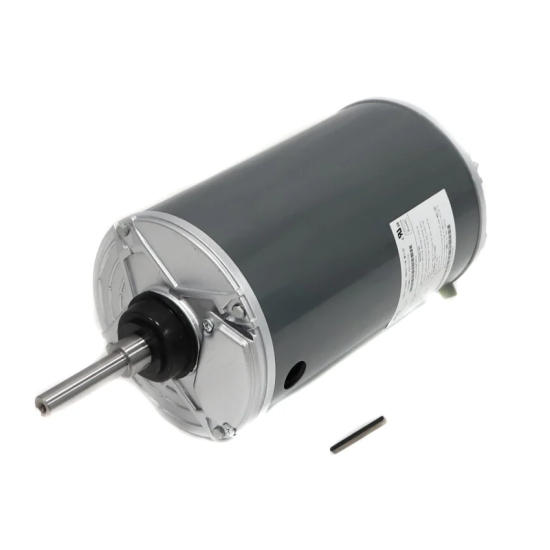

Carrier HD52AZ002 Condenser Fan Motor – 2 HP, 208-230/460V, 1140 RPM

Carrier HD52AZ002 Condenser Fan Motor – 2 HP, 208-230/460V, 1140 RPM

Maintain the cooling capacity of your commercial HVAC system with the Carrier HD52AZ002 Condenser Fan Motor. This is a Genuine OEM Factory Authorized Part, specifically engineered for heavy-duty Carrier, Bryant, and Payne industrial condensing units. With a powerful 2 HP output and versatile dual-voltage capabilities, this motor is the professional choice for large-scale air-cooled condensers and rooftop units.

Technical Specifications

  • Part Number: HD52AZ002
  • Horsepower: 2 HP
  • Voltage: 208-230 / 460 VAC (Dual Voltage)
  • Phase: 3 PH (Three Phase)
  • Speed: 1140 RPM
  • Frequency: 60 HZ
  • Frame Size: 56Y
  • Enclosure: Totally Enclosed Air Over (TEAO)

Direct Replacement & Legacy Support

The HD52AZ002 is the authorized direct replacement for older and discontinued models. It is an exact match for:

  • Carrier / Bryant / Payne P/N: HD52AK002
  • Note: This motor is commonly used in 38A, 38B, and 48 Series commercial equipment.

Heavy-Duty Commercial Design

The 56Y frame and TEAO enclosure ensure that this motor can withstand high ambient temperatures and exposure to the elements. Its 3-phase design provides the high starting torque and energy efficiency necessary for large-diameter fan blades in commercial cooling applications.

Installation & Maintenance Tip

When replacing a high-horsepower commercial motor, we recommend a full inspection of the fan blade hub and system contactor. A worn contactor can cause "single-phasing," which will lead to the immediate burnout of a new 3-phase motor. Always ensure your voltage taps are correctly configured for either 230V or 460V operation per the motor's wiring diagram.

Shipping Information

  • Availability: Shipping rates apply to the continental United States only.
  • Handling: Due to the weight and industrial frame of this 2 HP motor, it is shipped in reinforced packaging to prevent transit damage to the shaft or mounting base. If you would prefer this motor to be shipped LTL Freight instead to decease the risk of damage, please call us on 877-821-8770 for a quote.

$1,280.00

Add to Cart:
  • Model: HD52AZ002
  • Manufactured by: Carrier
